GFBFG4-D-105ES 儲能熔斷器400A-2000A 1500V dc

[附件: Download]

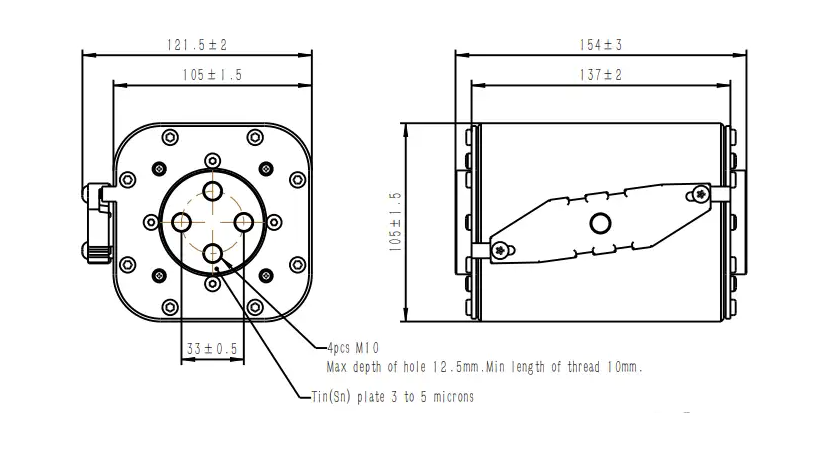

Dimensions (mm) 尺寸

Description

Design For DC Applications
Excellent Dc Performance
Superior cycling capability
Application: Industrial ESS

Standards / Approvals

Refer To UL 248-13
Reach Declaration Available Upon Request
CE
RoHS Compliant

Work/Storage condition

Work within the temperature -40℃ to +85℃ range
Fuses should be stored in their original boxes under typical warehouse conditions for electromechanical products (free from any dirt and dust). Storage conditions should be no more than 70 percent relative humidity and in the -40℃ to +85℃ range.
This product is a bolt connected fuse for partial range protection, with strong current limiting, high breaking capacity and other characteristics.
It is suitable for energy storage, wind power and other industry applications, which can be used as short-circuit protection for energy storage systems, power systems and other devices and equipments.

Fuse Ratings

Part No.	Fuse	Size	Average @ 50KA/1500Vdc		Power Loss (W) 1.0In
Part No.	Amps	Size	A2s Melting	A2s Clearing	Power Loss (W) 1.0In
GFBFG4-400D-105ES	400	4 #	42,250	255,800	168
GFBFG4-500D-105ES	500	4 #	93,500	585,500	175
GFBFG4-630D-105ES	630	4 #	163,000	1,020,500	185
GFBFG4-700D-105ES	700	4 #	225,500	1,320,000	192
GFBFG4-800D-105ES	800	4 #	310,000	1,970,000	196
GFBFG4-900D-105ES	900	4 #	425,000	2,600,000	200
GFBFG4-1000D-105ES	1000	4 #	640,000	4,005,000	210
GFBFG4-1100D-105ES	1100	4 #	780,300	4,950,000	220
GFBFG4-1200D-105ES	1200	4 #	915,000	5,865,500	242
GFBFG4-1250D-105ES	1250	4 #	1,080,000	7,150,600	255
GFBFG4-1300D-105ES	1300	4 #	1,300,000	8,040,000	260
GFBFG4-1350D-105ES	1350	4 #	1,320,000	9,060,000	266
GFBFG4-1400D-105ES	1400	4 #	1,665,000	10,700,000	275
GFBFG4-1500D-105ES	1500	4 #	1,870,000	11,950,500	282
GFBFG4-1600D-105ES	1600	4 #	2,235,000	14,880,000	294
GFBFG4-1800D-105ES	1800	4 #	2,850,000	17,950,000	313
*GFBFG4-2000D-105ES	*2000	4 #	3,750,000	23,900,000	345
*：If there are any requirements, please communicate with the original factory staff first.
